Configuration of the Hybrid system
15 kWh battery/2 – 5 kWp solar system/Genset 11 kVA
CN Hybrid
Smart energy management system integrated in the CN20
The concept of the unit is to provide the most efficient energy production and storage combination for deployed infrastructure systems regardless of the geographical and environmental conditions.
The smart energy management system integrated in the CN20 unit, the built in batteries, the solar PV array and the generator provide permanent and safe power generator while the fuel consumption of the geretor is decreased by 50–70% and its maintenance cycles by 80%. The fuel and maintenance savings, the autonomous operation combined with the logistical efficiency of the foldable units create a unique solution for anyone operating in the field no matter where and when.

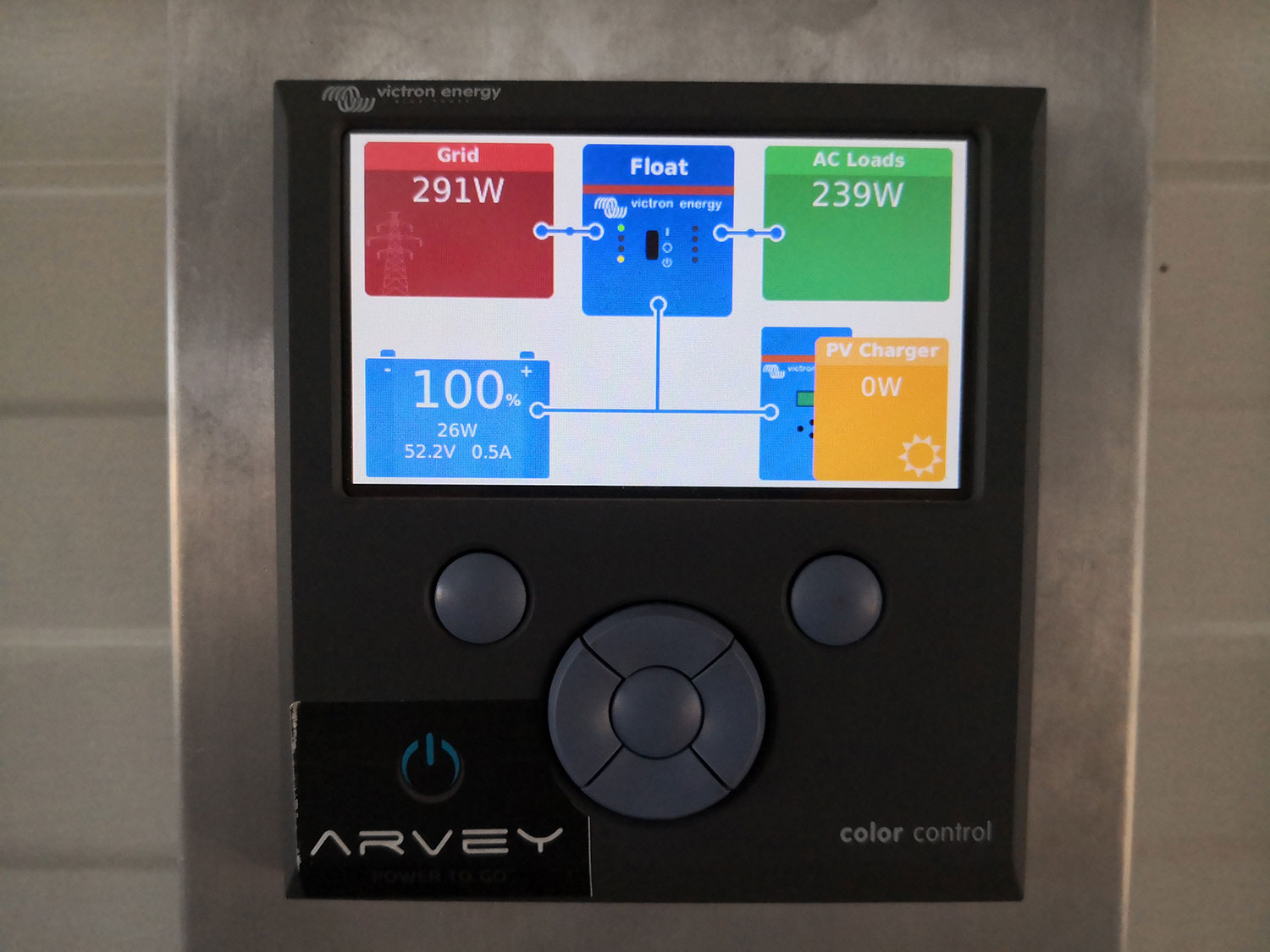

The key to the system’s performance is the ability to connect several power sources with the help of a central inverter – Victron Energy MultiPlus II 48V/5000/70, generating and storing energy in the most efficient way.

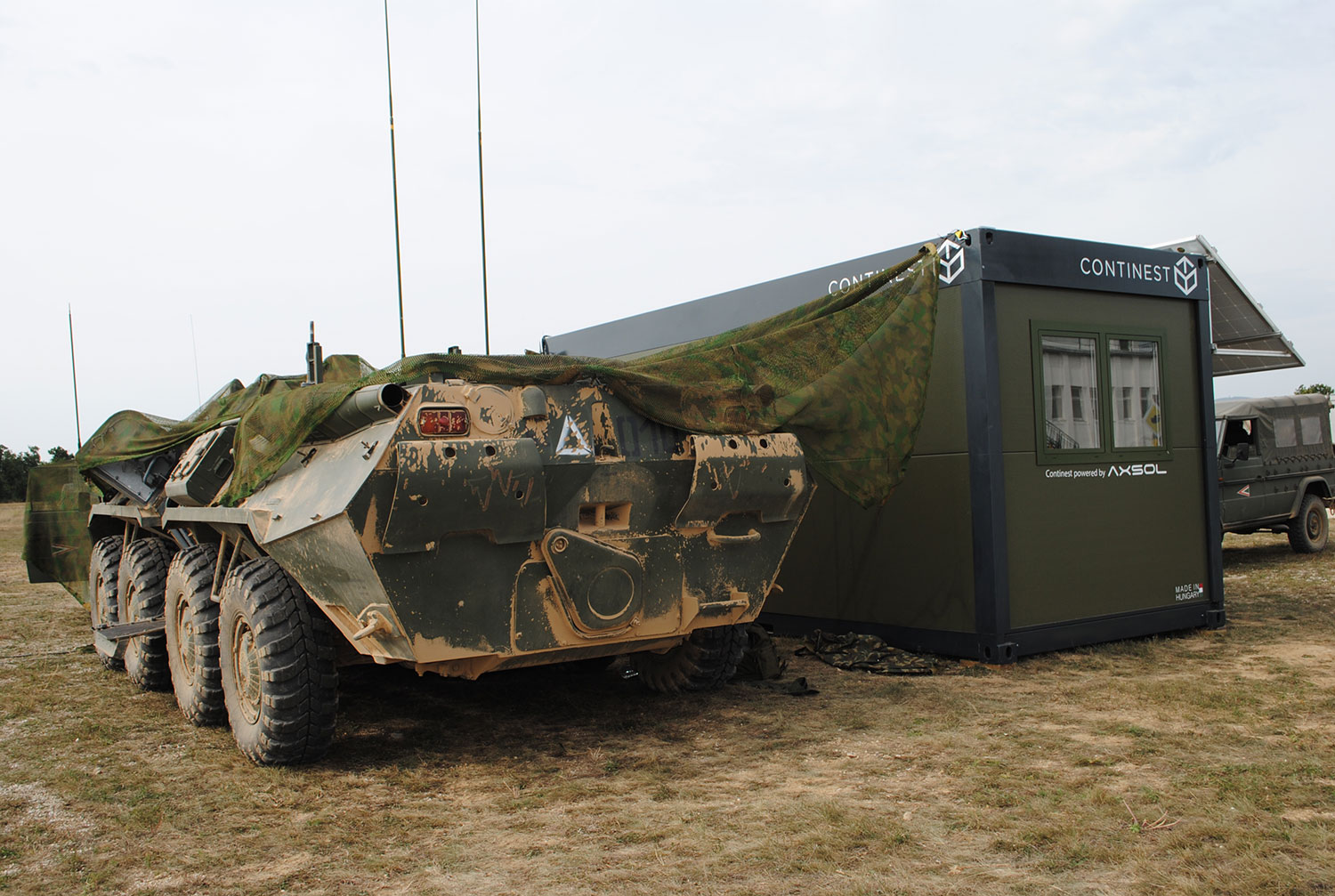

Field tested during Brave Warrior 2020 Hungary (10–24 Sept).

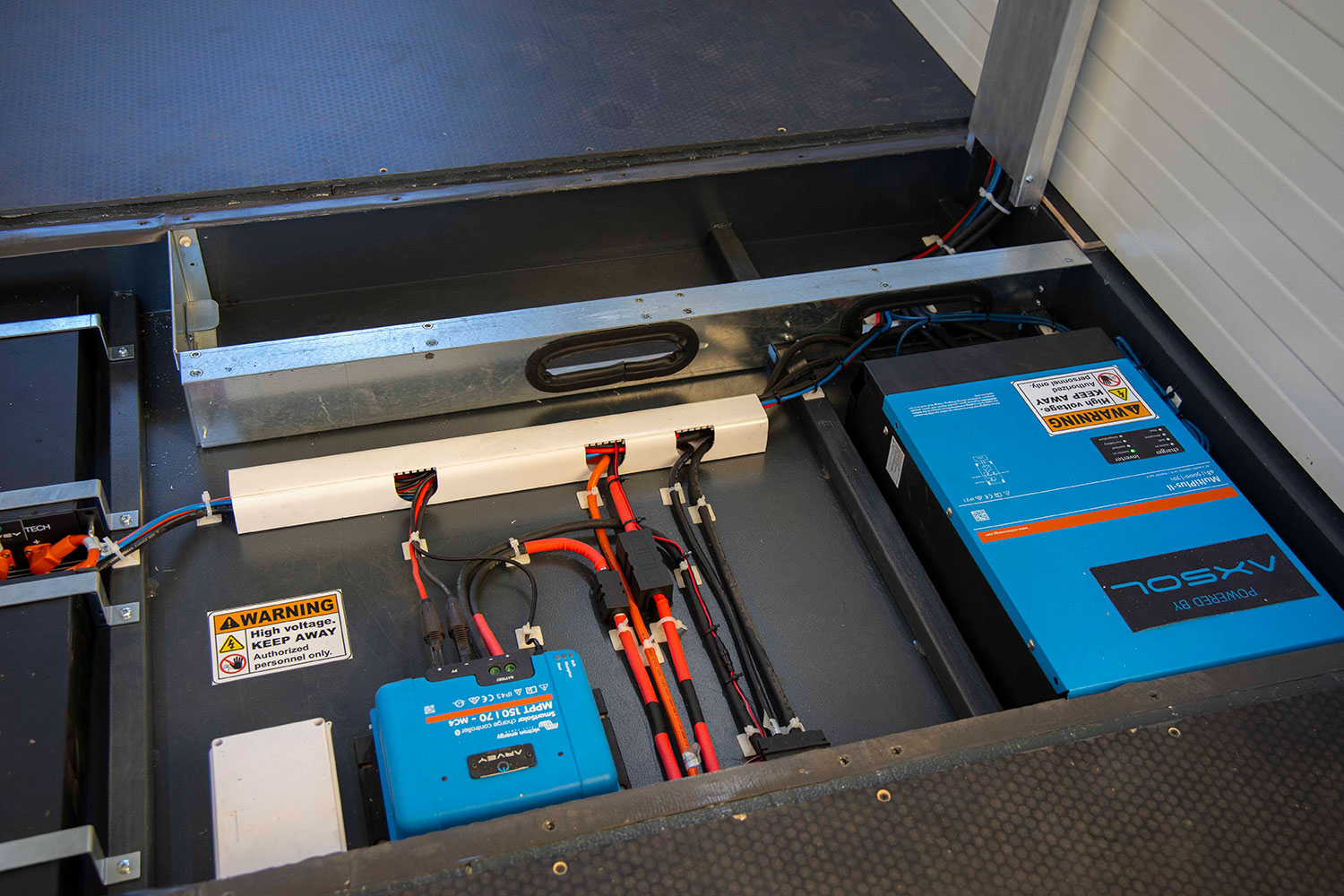

In addition to the main 3-phase 400V power supply, it is possible to provide the necessary power with 3 “LiFePO4” batteries with a capacity of 5,12 kWh each which were installed under the floor of the container between the forklift pockets in the bottom frame. Based on customer request the battery capacity can be scaled between 10 kWh and 30 kWh.

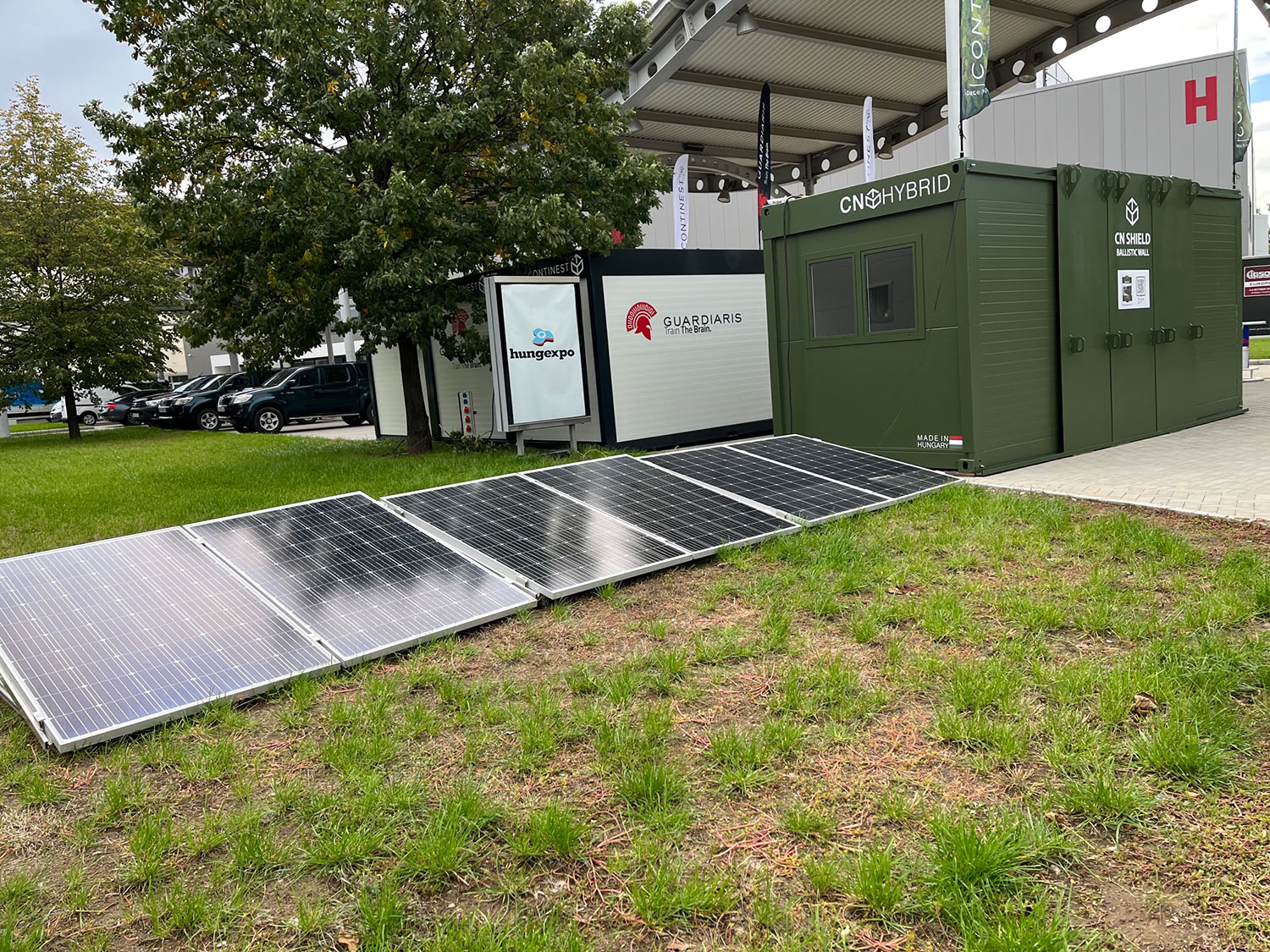

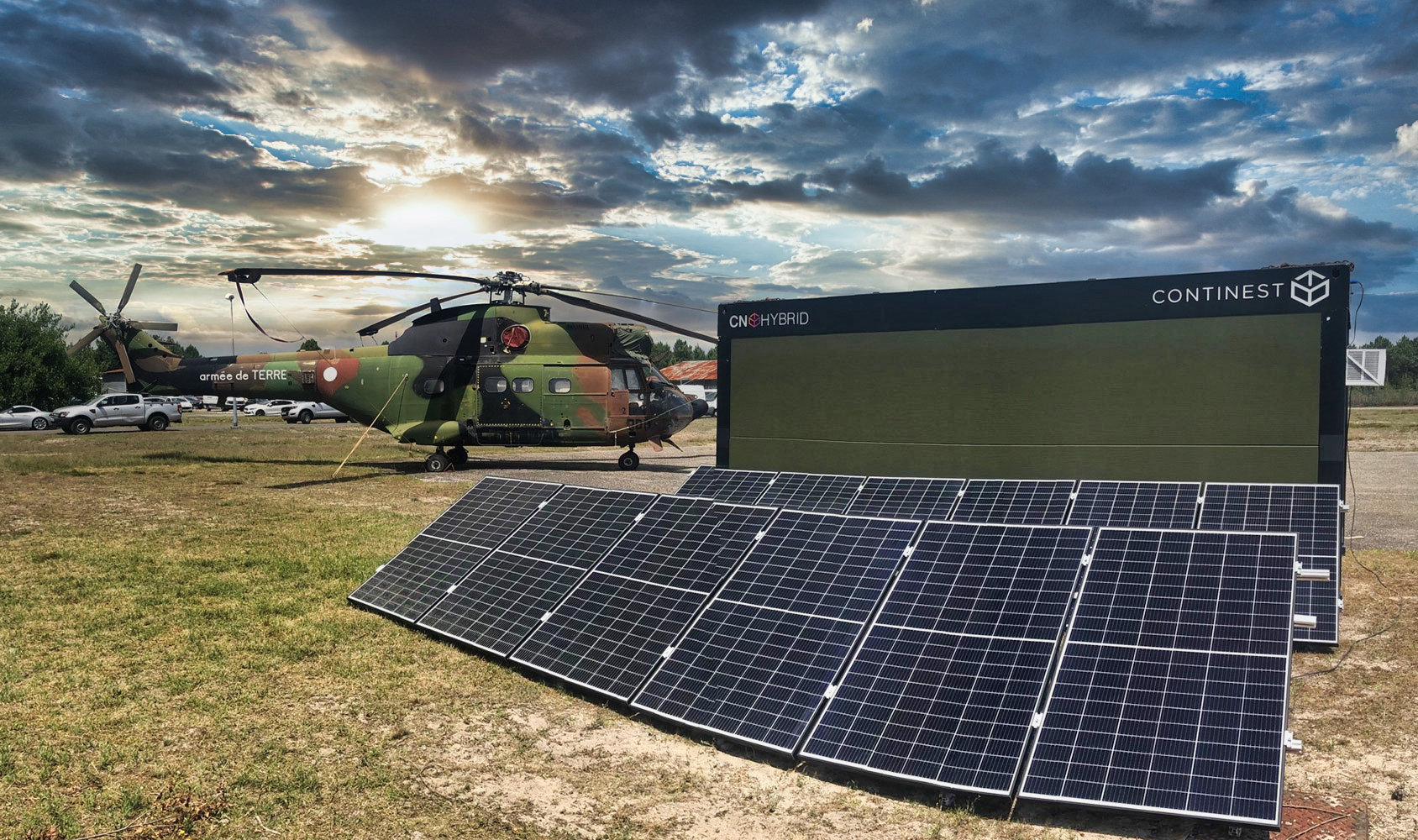

In addition, it is possible to mount solar panels on the roof and the side of the container, for which a “Victron Energy -” MPPT 250/80-TR MC4 ”charge controller. Solar panels power can be between 1,8 – 7 kWp.
STACKABLE
10 units can be loaded
and stacked on a standard trailer
CN Hybrid
Hybrid system
The external generator will start generating power automatically when the charge level of the batteries drop bellow a pre-set level. Due to the temporary usage of the generator both its fuel consumption as well maintennance are significantly decreased (50%-80%).
CN Hybrid
